Hyr eller köp mobila, fullt utrustade sanitetsutrymmen, duschmoduler eller toalettmoduler.
Article
CF20H30-S00000
Variant på 2,5 m
Area
15 m²
L × W × H
6 055 × 2 435 × 2 890 mm
Ceiling height
2 500 mm
Variant på 3 m
Area
18 m²
L × W × H
6 055 × 3 000 × 2 890 mm
Ceiling height
2 500 mm
read more
Variants
20 foot ELA sanitary container with 2 showers/2 WCs
Article
CF20H25-S000F0
Size
Area
15 m²
L × W × H
6.055 mm × 2.435 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
2 shower cubicles
2 WCs
2 urinals
4 sinks
Mirror, tray, towel hook, toilet roll holder
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 300 l, 6 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 8.1 kW
20 foot ELA sanitary container with 4 WCs
Article
CF20H25-SWC4F0
Size
Area
15 m²
L × W × H
6.055 mm × 2.435 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
4 WCs
4 urinals
3 sinks
Mirror, tray, towel hook, toilet roll holder
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 30 l, 2 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 4.1 kW
20 foot ELA sanitary container black/white
Article
CF20H25-SSW000
Size
Area
15 m²
L × W × H
6,055 mm × 2,435 mm × 2,890 mm
Ceiling height
2,500 mm
Equipment
1 shower cubicle
1 WC
1 hot water tank, 30 l, 2 kW
Mirror, tray, towel hook, toilet roll holder
1 bathroom tilt windows
3 tilt-and-turn windows, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 frost monitor, 0.5 kW
3 electric convector heaters with thermostat, 1 kW each
DN 100 drain, pipe size 1 inch
3 LED panels with IR presence detectors, 11 W each
1 LED light, 18 W
Connected load: 5.5 kW
1 sink
20 foot ELA sanitary container with 5 showers
Article
CF20H25-SDU5F0
Size
Area
15 m²
L × W × H
6.055 mm × 2.435 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
5 shower cubicles
5 sinks
Mirror, tray, towel hook
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 400 l, 6 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 8.1 kW
10 foot ELA sanitary container with 2 WCs (men/women)
Article
CF10H25-SDH100
Size
Area
7,5 m²
L × W × H
2.990 mm × 2.435 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
2 WCs (men/women)
1 urinal
2 sinks
2 hot water tanks, 5 l each, 2 kW each
Mirror, tray, towel hook, toilet roll holder
2 bathroom tilt windows
2 frost monitors, 0.5 kW each
DN 100 drain, pipe size 1 inch
2 damp-proof, surface-mounted LED lights, 29 W
Connected load: 5.1 kW
10 foot ELA sanitary container with 1 shower/1 WC
Article
CF10H25-S00000
Size
Area
7,5 m²
L × W × H
2.990 mm × 2.435 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
1 shower cubicle
1 WC
1 urinal
2 sinks
1 hot water tank, 30 l, 2 kW
Mirror, tray, towel hook, toilet roll holder
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 frost monitor, 0.5 kW
DN 100 drain, pipe size 1 inch
1 damp-proof, surface-mounted LED light, 29 W
Connected load: 2.6 kW
20 foot ELA premium sanitary container with 2 showers/2 WCs
Article
CF20H30-S000F0
Size
Area
18 m²
L × W × H
6.055 mm × 3.000 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
2 shower cubicles
2 WCs
2 urinals
4 sinks
Mirror, tray, towel hook, toilet roll holder
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 300 l, 6 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 8.1 kW
20 foot ELA premium sanitary container with 5 WCs
Article
CF20H30-SWC5F0
Size
Area
18 m²
L × W × H
6.055 mm × 3.000 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
5 WCs
4 urinals
3 sinks
Mirror, tray, towel hook, toilet roll holder
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 30 l, 2 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 4.1 kW
20 foot ELA premium sanitary container black/white
Article
CF20H30-SSW000
Size
Area
18 m²
L × W × H
6.055 mm × 3.000 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
1 WC
1 sink
1 shower cubicle
1 hot water tank, 30 l, 2 kW
Mirror, tray, towel hook, toilet roll holder
1 bathroom tilt window
3 tilt-and-turn windows, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 frost monitor, 0.5 kW
3 electric convector heaters (1 kW each) with thermostat
3 LED panels with IR presence detectors, 11 W each
1 LED light, 18 W
DN 100 drain, pipe size 3/4 inch
Connected load: 5.5 kW
20 foot ELA premium sanitary container with 5 showers
Article
CF20H30-SDU5F0
Size
Area
18 m²
L × W × H
6.055 mm × 3.000 mm × 2.890 mm
Ceiling height
2.500 mm
Equipment
5 shower cubicles
5 sinks
Mirror, tray, towel hook
1 tilt-and-turn window, approx. 1,000 mm × 1,200 mm, decorative glazing, no roller shutter
1 fan heater, 2 kW
DN 100 drain, pipe size 1 inch
1 hot water tank, 400 l, 6 kW
1 LED light, 18 W
2 damp-proof, surface-mounted LED lights, 29 W each
Connected load: 8.1 kW
Overview
Technical information
Dimensions
ELA Sanitetsmodul, 2,5 m / 10 fot
L: 2 990 mm
B: 2 435 mm
H: 2 890 mm
Rumshöjd: 2 500 mm
ELA Sanitetsmodul, 2,5 m / 20 fot
L: 6 055 mm
B: 2 435 mm
H: 2 890 mm
Rumshöjd: 2 500 mm
ELA Sanitetsmodul, 3 m / 20 fot
L: 6 055 mm
B: 3 000 mm
H: 2 890 mm
Rumshöjd: 2 500 mm

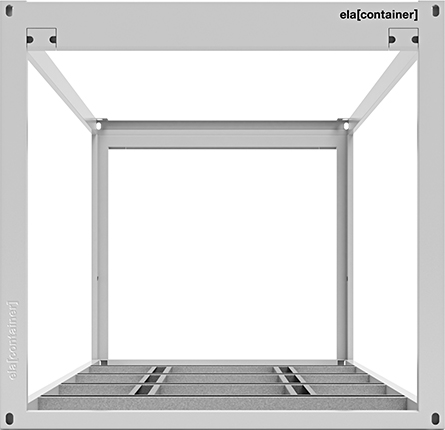

Frame
Självbärande stålkonstruktion
Upp till fyra moduler kan staplas på varandra
Täckt inmatning
Takhöjd 2,5 m eller 2,75 m
CE-märkt
Brandskydd: enligt DIN EN 13501 i standardutförande (fri rumshöjd 2,5 m) R 30, med modifieringar R 60

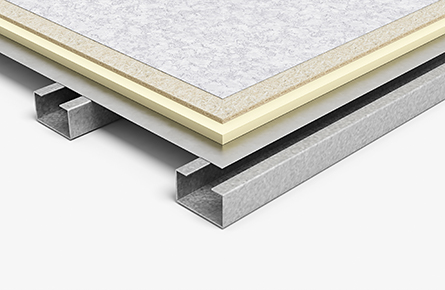

Floor
Halksäkert
Enkelt att rengöra
Robust och designat för lång livslängd
Färger
R11-golv i badrum, mörkgrått

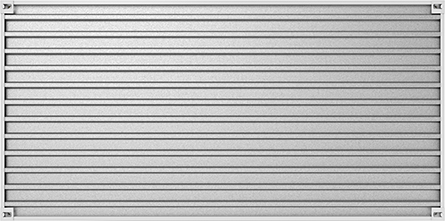

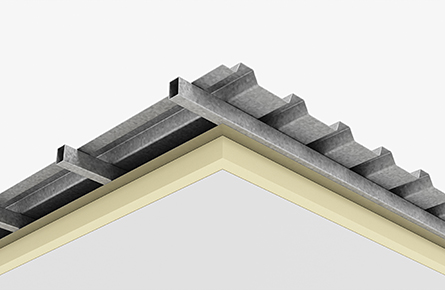

Roof
Regnvattenavlopp med inbyggd lövsil
Hårt tak i enlighet med avsnitt 23 av den tyska bygglagen (MBO) och DIN EN 13501-5
Varmtakssystem
Brandskydd: REI 30 som standard (baserat på expertbedömning)
