Premiumcontainer | ELA Container Sweden

3-metre wide container with extra space and potential savings of up to 25%.

Article

CF20H30-B00000

3 m variant

Area

18 m²

L × W × H

6,055 × 3,000 × 2,890 mm

Ceiling height

2,500 mm

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

Download datasheet

Variants

20 foot ELA premium container

Article

CF20H30-B00000

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with 3 keys

Coat hook rail

1 tilt-and-turn window, approx. 2,500 mm × 1,200 mm, with double glazing, aluminium roller shutter, anti-lifting device

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

2 LED lights, 40 W each

Type F sockets and light switches

2 empty junction boxes in the frame corners

Electric convector heater (2 kW) with thermostat

Connected load: 2.1 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

20 foot ELA premium container with 1 shower/1 WC

Article

CF20H30-BDWC00

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with three keys

Coat hook rail

1 tilt-and-turn window, approx. 2,000 mm × 1,200 mm, with double glazing, aluminium roller shutter, anti-lifting device

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

1 LED lights, 40 W

Type F sockets and light switches

2 empty junction boxes in the frame corners

Electric convector heater, 2 kW, with thermostat

1 WC

1 sink

1 shower cubicle

1 hot water tank, 30 l, 2 kW

Mirror, tray, towel hook, toilet roll holder

1 bathroom tilt window

1 frost monitor, 0.5 kW

2 LED lights, 18 W

1 hot water tank, 5 l, 2 kW

DN 100 drain, pipe size 3/4 inch

Connected load: 4.6 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

20 foot ELA premium container with 1 WC

Article

CF20H30-B1WC00

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with 3 keys

Coat hook rail

1 tilt-and-turn window, approx. 2,000 mm × 1,200 mm, with double glazing, aluminium roller shutter, anti-lifting device

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

2 LED lights, 40 W each

Type F sockets and light switches

2 empty junction boxes in the frame corners

Electric convector heater, 2 kW, with thermostat

1 WC

1 sink

1 hot water tank, 5 l, 2 kW

Mirror, tray, towel hook, toilet roll holder

1 bathroom tilt window

1 frost monitor, 0.5 kW

2 LED lights, 18 W

DN 100 drain, pipe size 3/4 inch

Connected load: 4.7 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

20 foot ELA premium container with 2 WCs

Article

CF20H30-B2WC00

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with 3 keys

Coat hook rail

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

1 LED lights, 40 W each

Type F sockets and light switches

2 empty junction boxes in the frame corners

2 WCs

2 sinks

2 hot water tanks, 5 l each, 2 kW each

Mirror, tray, towel hook, toilet roll holder

2 bathroom tilt window

2 frost monitors, 0.5 kW each

3 LED lights, 18 W

DN 100 drain, pipe size 3/4 inch

Connected load: 7.1 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

20 foot ELA premium container with 3 WCs (men/women)

Article

CF20H30-B3WCF0

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with 3 keys

Coat hook rail

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

1 LED lights, 40 W each

Type F sockets and light switches

2 empty junction boxes in the frame corners

3 WCs

1 urinal

2 sinks

2 hot water tanks, 5 l each, 2 kW each

Mirror, tray, towel hook, toilet roll holder

3 bathroom tilt windows

2 frost monitors, 0.5 kW each

1 LED light, 18 W

2 surface-mounted LED lights, 29 W each

Electric convector heater (1 kW) with thermostat

DN 100 drain, pipe size 3/4 inch

Connected load: 6.1 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

20 foot ELA premium container with interior corridor

Article

CF20H30-B000F0

Size

Area

18 m²

L × W × H

6.055 × 3.000 × 2.890 mm

Ceiling height

2.500 mm

Equipment

1 multipurpose exterior door, 875 mm × 2,000 mm, secure cylinder lock with 3 keys

Coat hook rail

1 tilt-and-turn window, approx. 2,500 mm × 1,200 mm, with double glazing, aluminium roller shutter, anti-lifting device

Electrical installation compliant with DIN VDE 0100, 400 / 230 V, 50 Hz

Electrical input and output, CEE 400 V/32 A

2 LED lights, 40 W each

Type F sockets and light switches

2 empty junction boxes in the frame corners

Electric convector heater (2 kW) with thermostat

Can be combined with additional ELA containers

Corridor with/without door

1 LED light, 18 W

Connected load: 2.1 kW

Colors

Pebble grey, RAL 7032

Golden yellow, RAL 1004

Request

Overview

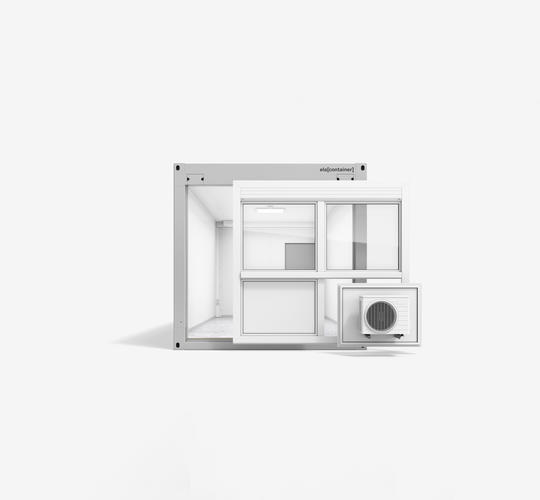

ELA Container - Interchangeable frames and elements

Versatile

Modular frames and elements

Whether as accommodation, offices, on building sites or as sanitary containers, the three-metre-wide ELA premium containers are exceptionally versatile and convertible. Their versatility is also due to their frontal modular frames which can be fitted with a wide range of elements to meet the specifications of the user.

More details

Heating, air-conditioning and glass panes? To rent or buy an ELA container is to have freedom of choice. With their modular frames, ELA container rooms can adapt to a variety of working conditions and customer requirements. The modular elements can be installed or exchanged in minutes. Up to two modular elements can be combined per container. The selection includes: Blank elements for a consistent appearance, panes of glass to increase window area, split air-conditioning units, compact air conditioners, gas heating or electric heating.

Benefits

Flexible equipment with modular frames

Modular elements have countless potential combinations

Installation in just a few minutes

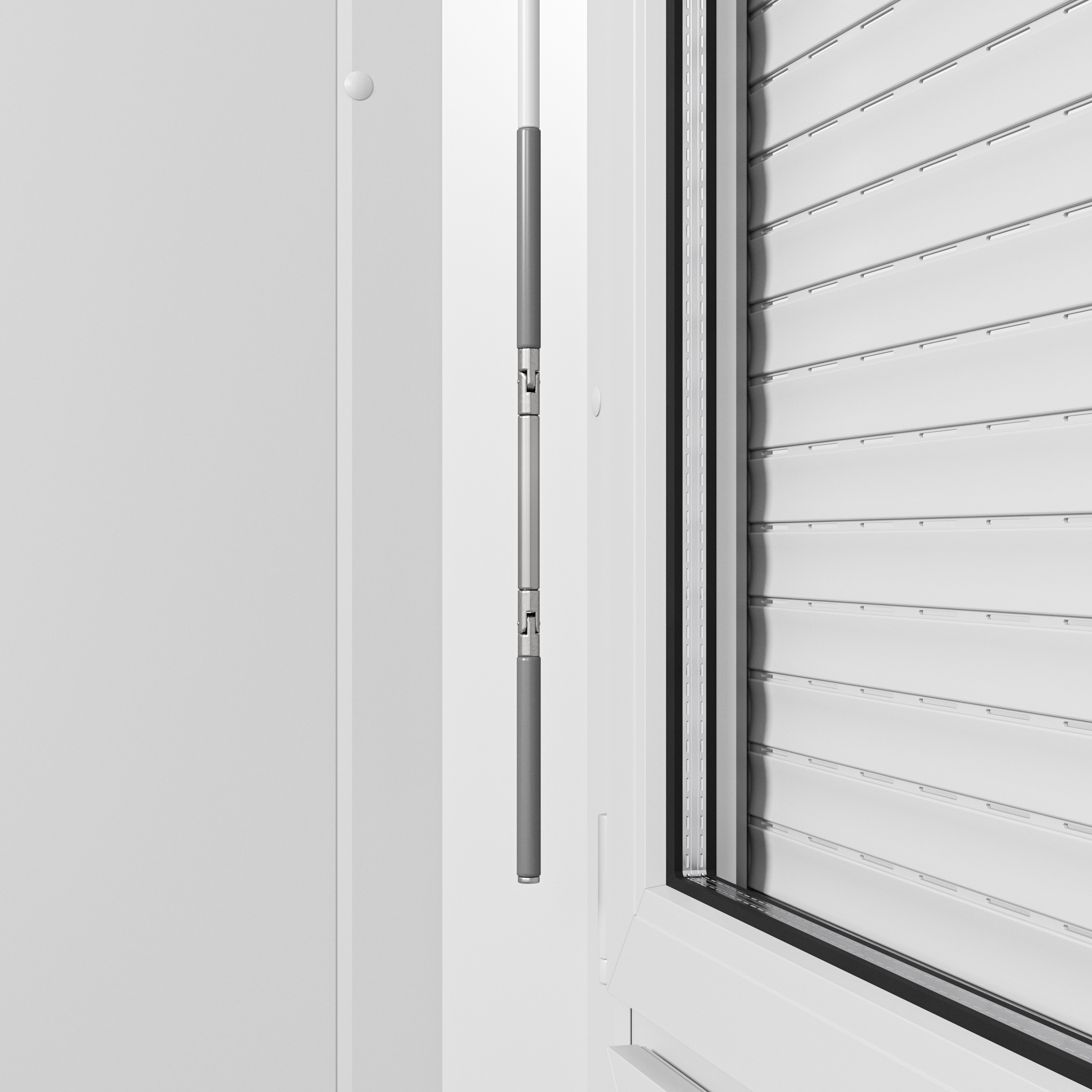

Bright and friendly

Windows and roller shutters

Large tilt-and-turn windows let daylight shine into ELA container rooms. But too much sunlight can also become a problem. That is why ELA containers feature windows with built-in roller shutters for reliable privacy and protection from the sun.

More details

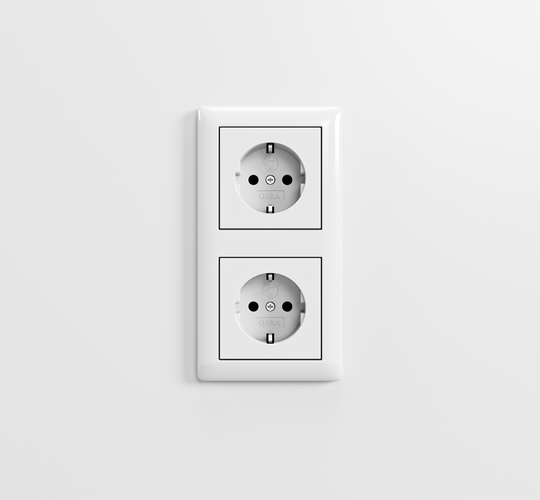

Ready to use immediately

Plug sockets

ELA premium containers are ready to use immediately – including a reliable power supply. In ELA containers, everything runs smoothly from the outset thanks to their professional electrical installations compliant with local regulations and modern shockproof type F sockets.

More details

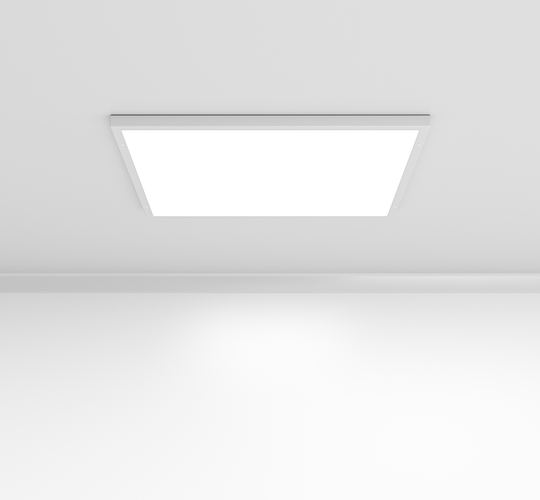

Efficient

LED lights

ELA premium containers are fitted with modern LED ceiling lights for pleasantly even lighting. The square light panels fit in with the straight lines of the container’s design perfectly and also save energy.

More details

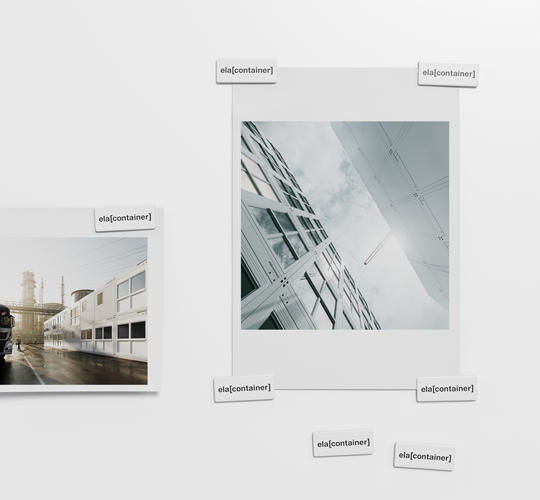

Practical

Magnetic walls

Decorate the walls of the container or use them to organise your work cleanly and with zero residue with the magnetic walls of ELA premium containers. Construction drawings or project plans can be stuck to the container walls with ease using magnets.

More details

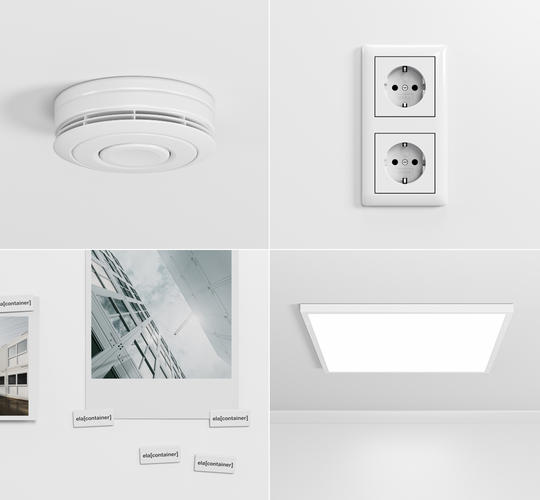

Elaborate and flexible

Basic equipment

Lots of additional pieces of equipment make ELA containers a premium system-building product. Exceptionally robust multi-purpose doors, smoke detectors and secure locks are just some examples of the elaborate basic equipment in flexible ELA container rooms.

More details

Even fitted with their standard equipment, ELA containers are exceptionally robust and durable. This is due in no small part to clever details such as double swing multi-purpose doors with robust hinges and elegant ducts and conduits for an electrical installation throughout the container. And with smoke detectors fitted as standard, the container is safe too.

Benefits

Elaborate basic equipment

Stable, robust construction

Security with lock and smoke detector
